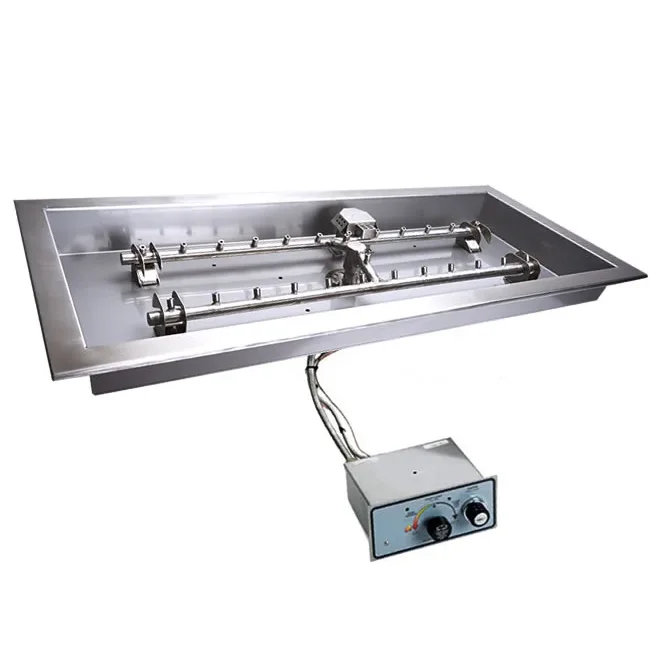

Our rectangle battery powered electronic ignition fire pit inserts are offered in five different widths from 24" up to 54" wide and are perfect for fire pits without electricity and need for flame sensing technology that utilizes a safety pilot flame that will turn the gas off if the wind blows the fire out. All sizes come standard with our stainless steel burner pan and Torpedo style H-Burner. Our patented Torpedo H-Burners are made from commercial grade 304 stainless steel and come standard with fuel efficient nozzles as well as hand welded burner nozzle components. With these features it allows the flame to burn both quiet and clean. The Torpedo fire pit burner creates a dramatic effect as it will yield a full flame fire. Need a high capacity Flexible Gas Supply Connector? We have them also. See more about our H style burners below.

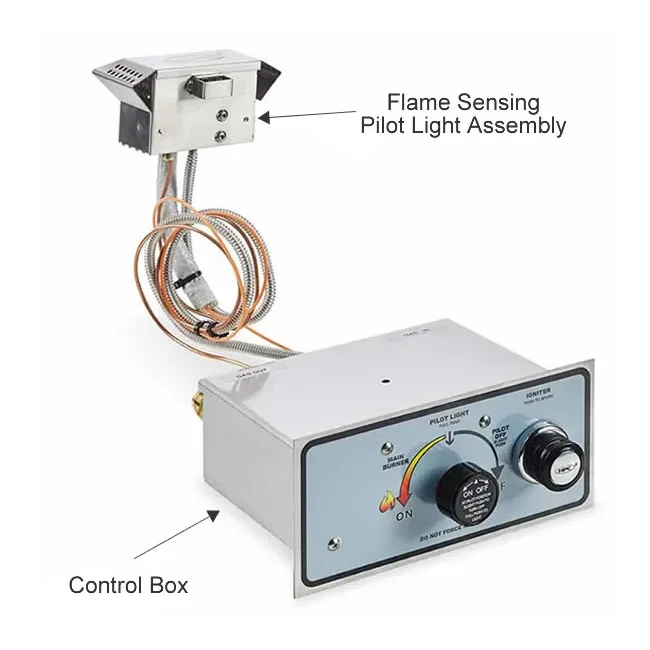

All models are UL certified and come completely assembled with push button battery powered flame sensing electronic ignition with a thermocouple safety valve and standing pilot. The 36" whistle free flexible gas line from the control box to the fire pit provides versatile and simple installation allowing you to place the stainless steel control valve box within the side of your custom built fire pit surround.
We also offer optional a high quality Vinyl Cover or Stainless Steel Cover to protect the fire pit from harsh weather.
|
24" Rectangular Kit Features:
- 18" X 6" Stainless Torpedo Style H-Burner
- 24" X 12" Rectangular Stainless Bowl Burner Pan
- Optional Glass Media or Lava Rock
- Holds 25 Lbs Of Lava Rock
- Holds 35 Lbs Of Decorative Glass
- Optional Fire Pit Logs
- 75,000 BTU Total Output
- Flex Gas Line Configuration
- Fully Assembled
- Available In Natural Gas & Propane
- Pan Support Cutout Opening: 25" W X 13" D X 14" H
|
30" Rectangular Kit Features:
- 24" X 6" Stainless Torpedo Style H-Burner
- 30" X 12" Rectangular Stainless Bowl Burner Pan
- Optional Glass Media or Lava Rock
- Holds 50 Lbs Of Lava Rock
- Holds 40 Lbs Of Decorative Glass
- Optional Fire Pit Logs
- 90,000 BTU Total Output
- Flex Gas Line Configuration
- Fully Assembled
- Available In Natural Gas & Propane
- Pan Support Cutout Opening: 31" X 13" D X 14" H
|
36" Rectangular Kit Features:
- 30" X 8" Stainless Torpedo Style H-Burner
- 36" X 14" Rectangular Stainless Bowl Burner Pan
- Optional Glass Media or Lava Rock
- Holds 50 Lbs Of Lava Rock
- Holds 55 Lbs Of Decorative Glass
- Optional Fire Pit Logs
- 90,000 BTU Total Output
- Flex Gas Line Configuration
- Fully Assembled
- Available In Natural Gas & Propane
- Pan Support Cutout Opening: 37" W X 15" D X 14" H
|
|
42" Rectangular Kit Features:
- 36" X 8" Stainless Torpedo Style H-Burner
- 42" X 14" Rectangular Stainless Bowl Burner Pan
- Optional Glass Media or Lava Rock
- Holds 50 Lbs Of Lava Rock
- Holds 65 Lbs Of Decorative Glass
- Optional Fire Pit Logs
- 140,000 BTU Total Output
- Flex Gas Line Configuration
- Fully Assembled
- Available In Natural Gas & Propane
- Pan Support Cutout Opening: 43" W X 15" D X 14" H
|
56" Rectangular Kit Features:
- 48" X 10" Stainless Torpedo Style H-Burner
- 54" X 16" Rectangular Stainless Bowl Burner Pan
- Optional Glass Media or Lava Rock
- Holds 100 Lbs Of Lava Rock
- Holds 90 Lbs Of Decorative Glass
- Optional Fire Pit Logs
- 140,000 BTU Total Output
- Flex Gas Line Configuration
- Fully Assembled
- Available In Natural Gas & Propane
- Pan Support Cutout Opening: 55" X 17" D X 14" H
|
| H-Burner Features |
|
Our Torpedo style H-Burner is the best burner for linear gas fire pits, the flame is extremely realistic with lava rock & especially appealing with glass media. It's designed to deliver a more robust flame effect for long fire pits.
- Uniform & full flame
- Innovative raised hub design - reduces unwanted water
- No distinct burner pattern at low flame setting
- Lower profile design requires less media
|
