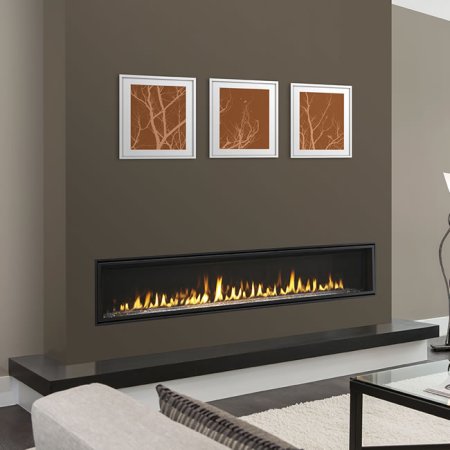

Highly featured Majestic Echelon II contemporary direct vent fireplace system is one of the widest linear units on the market today. The extremely large large viewing area will satisfy any size room in a home or business. With the optional driftwood log set you can turn the fireplace into a less contemporary unit and still keep a present-day decor. See below for required narrow clean face trim kits available in black, new bronze or gun metal finishes.
Standard Features:
- Contemporary Bronze Glass comes standard
- Large 71-1/2" Wide X 12-1/2" High viewing area
- Anti-reflective glass with quick latch system for easy access
- Contemporary glass LED illumination light system
- Optional reflective black ceramic glass liner kit
- Optional driftwood log set
- Trim kit color finish options
- Multiple contemporary glass & stone choices available
- Unit comes set up for use with Natural Gas. Conversion kit required for Propane Gas
- Barrier Safety Screen
- Top venting uses DVP series 5" x 8" direct vent pipe (requires 36" rise before 90 elbow for horizontal runs)
- AFUE efficiency rated
- FE (Fireplace Efficiency as per CSA P4) listed
- 18" flex line with On/Off shut off valve included
- CSA design certified.
IntelliFire Touch Ignition System Control Features:
- Full function RC400 remote control
- A/C control with battery back-up
- Electronic ignition
- Cold climate pilot optional setting
- Hi/lo 5 step flame adjustment
- Accent light with three step dimming
Click Here To View Vent Pipe
Optional Echelon II Wide View Fireplace Decorative Glass Media |
*Bronze Glass
|
Diamond Glass
|
Onyx Glass
|
Pacific Blue Glass
|
* Bronze Glass Comes Standard With The Echelon II Fireplace
Comes Standard With Bronze Glass Media Shown Below |
|
Required Decorative Trim Kit & Finishes |
Clean Face Trim
|
Trim Color Finish Options |
Black
|
New Bronze
|
Gun Metal
|
Heat Zone Technology |
Draw heat from your fireplace to another room in your home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output.
|
Model Echelon II ECHEL72IN |
Fuel Type |
Natural Gas With Propane Conversion Kit |
BTU/Hr. |
58,000 BTU (natural gas) and 45,000 BTU (propane) |
Framing Dimensions |
84-1/4" Wide X 48" High X 18-1/4" Deep |
Glass View Dimensions |
71-1/2" Wide X 12-1/2" High |
UL Listed |
UL307B |
