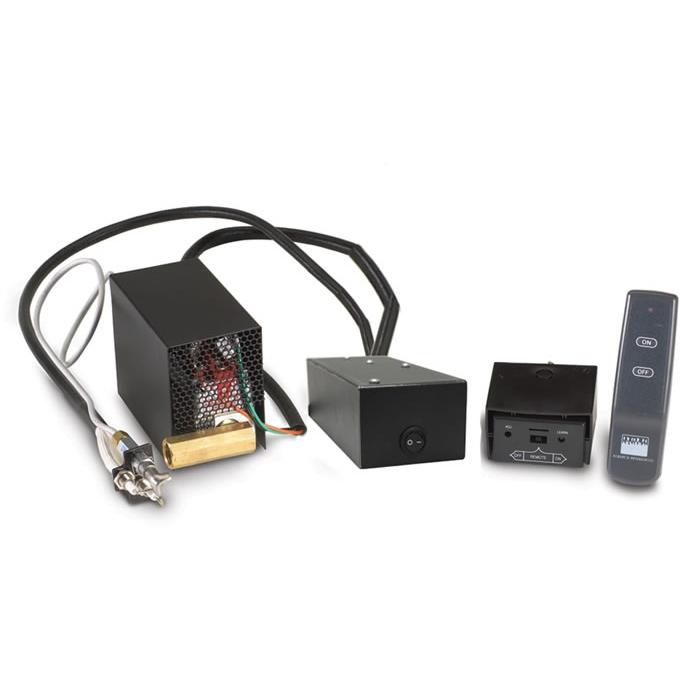

Real Fyre by RH Peterson EPK-1 electronic ignition gas control valve with non-standing pilot light (Includes Remote Control). For 12" to 30" log sets on natural gas and 12" to 36" log sets on propane gas. Battery operated spark ignition activates when log set is switched on & extinguishes the pilot when the set is turned off.
Features:
- Non standing pilot system
- Comes with RR-1A handset and remote receiver
- May be upgraded to RR-2A
- May be used with Wall Switches WS-1 & WS-2
- Battery operated
- Compatible with ALL Real Fyre Vented burners
- Large Gas Flow Capacity
- Up to 88,000 BTU capacity – Natural Gas
- Up to 110,000 BTU capacity – Propane
- May use with burner sizes 12″-36″
| Minimum Fireplace Dimensions Required For Log Sets With EPK-2 Control Attached |
| 16" Gas Log Sets |
Center Width 30" * |
Depth 11" |
Height 18" |
| 18" Gas Log Sets |
Center Width 31" |
Depth 14" |
Height 18" |
| 24" Gas Log Sets |
Center Width 35" |
Depth 14" |
Height 18" |
| 30" Gas Log Sets |
Center Width 41" |
Depth 15" |
Height 18" |
* This required width allows for centering of the gas log set inside the fireplace opening.
