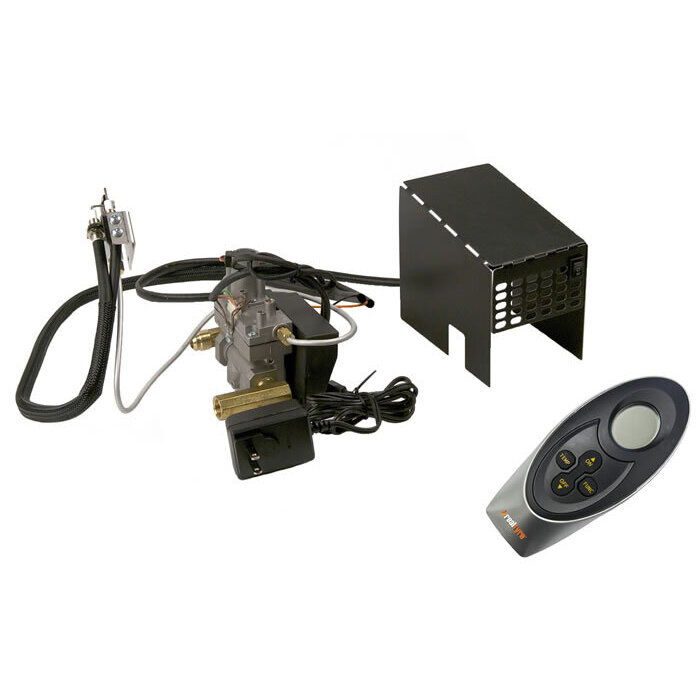

The Real Fyre by RH Peterson EPK-2V variable flame height electronic ignition gas control valve will light the pilot light and control the flame height all from the included remote control. Designed to be used with Real Fyre vented gas log sets ranging in sizes from 16" up to 60" in width. The 110v operated spark ignition activates when log set is switched on & extinguishes the pilot when the log set is turned off.
Features:
- 110 volt powered non standing pilot system
- Comes with variable flame height remote control & receiver
- 5 flame height levels
- Built-In timer & room temperature display
- Requires 110 volt of electricity
- Compatible with ALL Real Fyre Vented burners
- Up to 120,000 BTU capacity – Natural Gas
- Up to 180,000 BTU capacity – Propane
- May use with burner sizes 18″up to 60″
| Minimum Fireplace Dimensions Required For Log Sets With EPK-2V Control Attached |
| 16" Gas Log Sets |
Center Width 31" * |
Depth 16" |
Height 18" |
| 18" Gas Log Sets |
Center Width 32" |
Depth 16" |
Height 18" |
| 24" Gas Log Sets |
Center Width 36" |
Depth 16" |
Height 18" |
| 30" Gas Log Sets |
Center Width 42" |
Depth 16" |
Height 18" |
| 36" Gas Log Sets |
Center Width 48" |
Depth 16" |
Height 18" |
| 42" Gas Log Sets |
Center Width 54" |
Depth 16" |
Height 18" |
| 48" Gas Log Sets |
Center Width 60" * |
Depth 16" |
Height 18" |
| 60" Gas Log Sets |
Center Width 72" * |
Depth 16" |
Height 18" |
* This required width allows for centering of the gas log set inside the fireplace opening.
